Setting up a conditional visibility of input fields

The conditional visibility of a calculator’s elements lets you both hide or reveal specific input fields or calculator components, depending on the results or values entered into other input fields.

Abdul Samad

Written by Abdul Samad

Conditional visibility is a powerful feature in ActiveCalculator that allows you to hide or reveal specific input fields or calculator components based on the results or values entered into other input fields. When a condition for a specific field is true, the field becomes visible; if not, it remains hidden. This feature enables you to create dynamic and interactive calculators that adapt to user inputs.

Prerequisites

Before we dive into setting up conditional visibility, let's assume your calculator consists of the following elements:

  • A number input field
  • A range slider
  • A formula element

In this example, we want to show the range slider only when the number entered in the numeric input field is greater than 10.

Calculator with Number Input Field and Range Slider
Calculator with Number Input Field and Range Slider

Setting Up Conditional Visibility

Follow these steps to set up conditional visibility for the range slider:

  1. Click on the Range Slider element in your calculator.

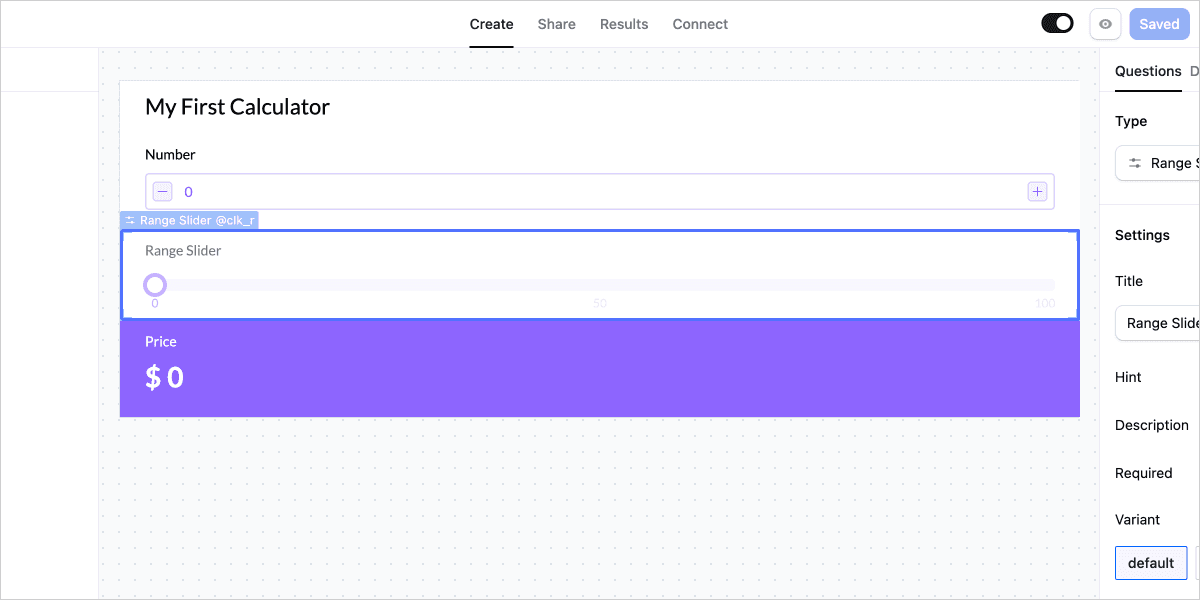

Range Slider Element
Range Slider Element
  1. In the right sidebar, click on the "Questions" tab.
Questions Tab
Questions Tab
  1. Scroll down to the "Advanced Settings" section.
  2. Toggle the switch below the "Enable conditional element visibility" label to the ON position.

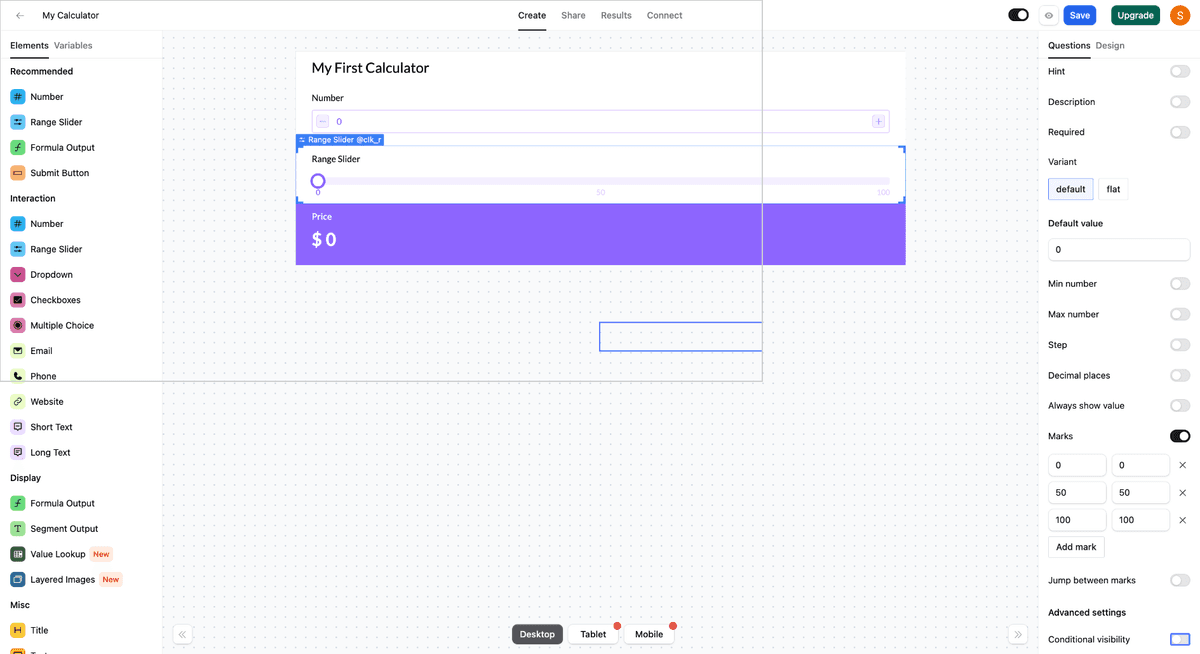

Enable Conditional Element Visibility
Enable Conditional Element Visibility
  1. Now, you need to select a variable to control the visibility. The slider will be shown when the selected variable's value is true or not 0. Let's create a custom variable for this purpose.

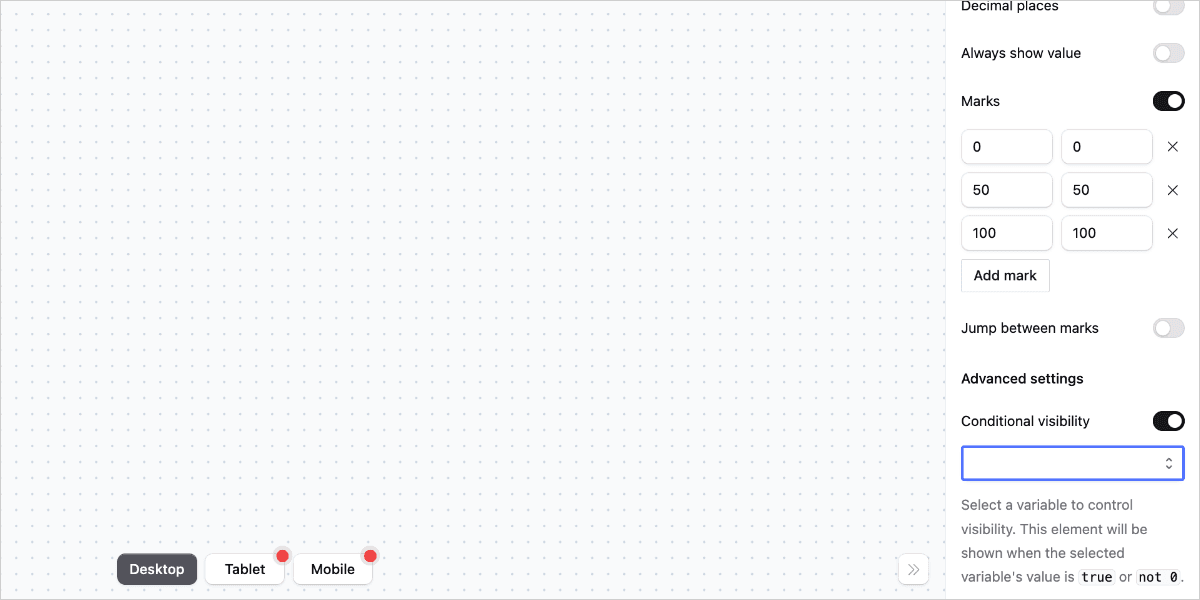

Conditional Visibility Settings
Conditional Visibility Settings
  1. Click on the "Variable" tab in the left sidebar on the right.

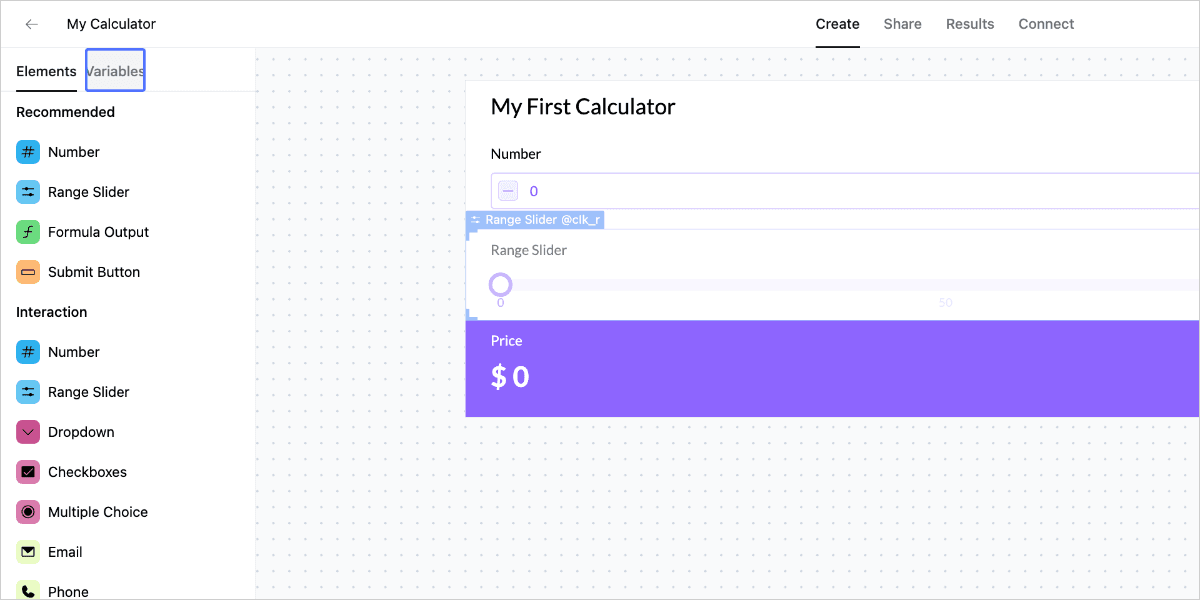

Variable Tab
Variable Tab
  1. Click the "Add custom variable" button.

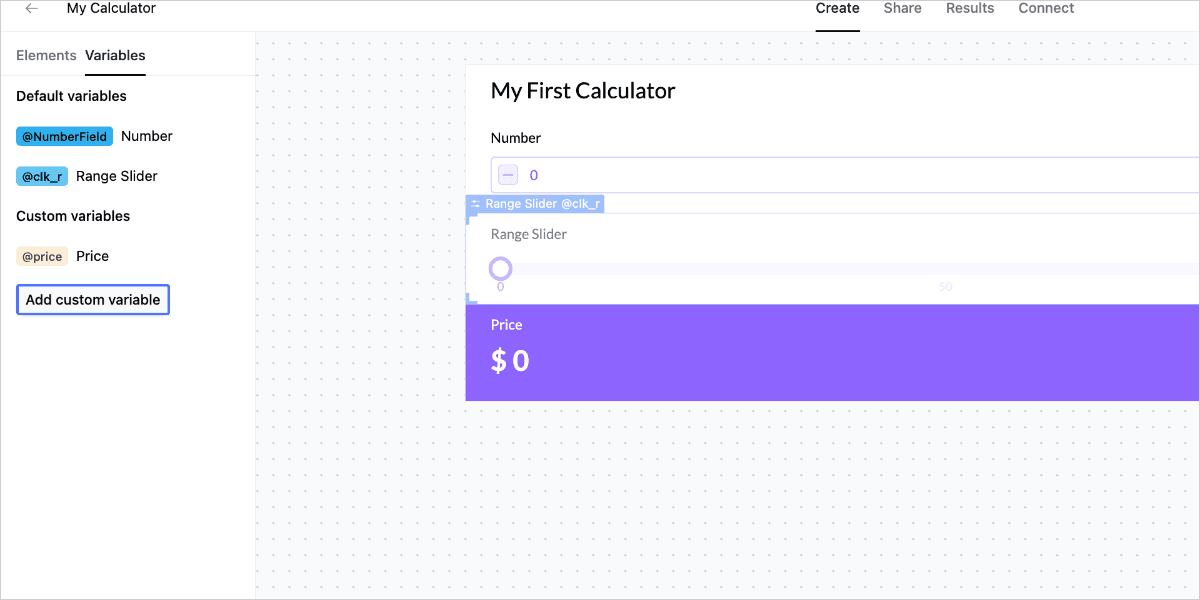

Add Custom Variable
Add Custom Variable
  1. Type a name for the variable (e.g., "controlVisibilitySlider") and add the following formula to control visibility:
@NumberField > 10

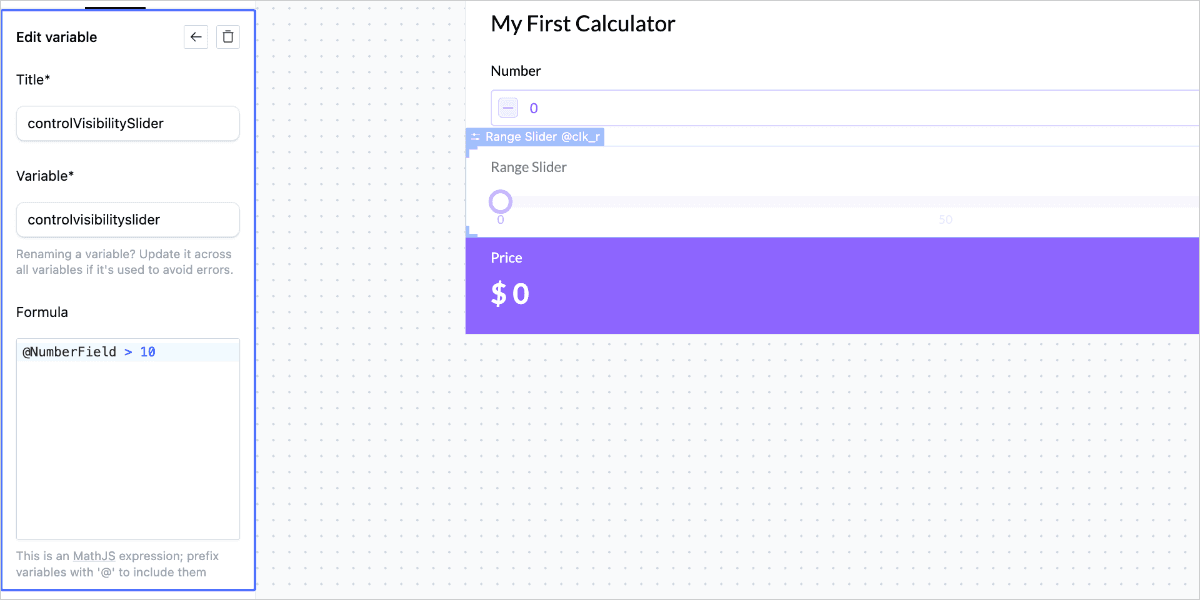

Custom Variable Formula
Custom Variable Formula

This formula checks if the value entered in the numeric input field (assuming its ID is "NumberField") is greater than 10.

  1. Go back to the "Questions" tab and, under the "Setting conditional visibility" section, select the newly created "controlVisibilitySlider" variable from the dropdown menu.

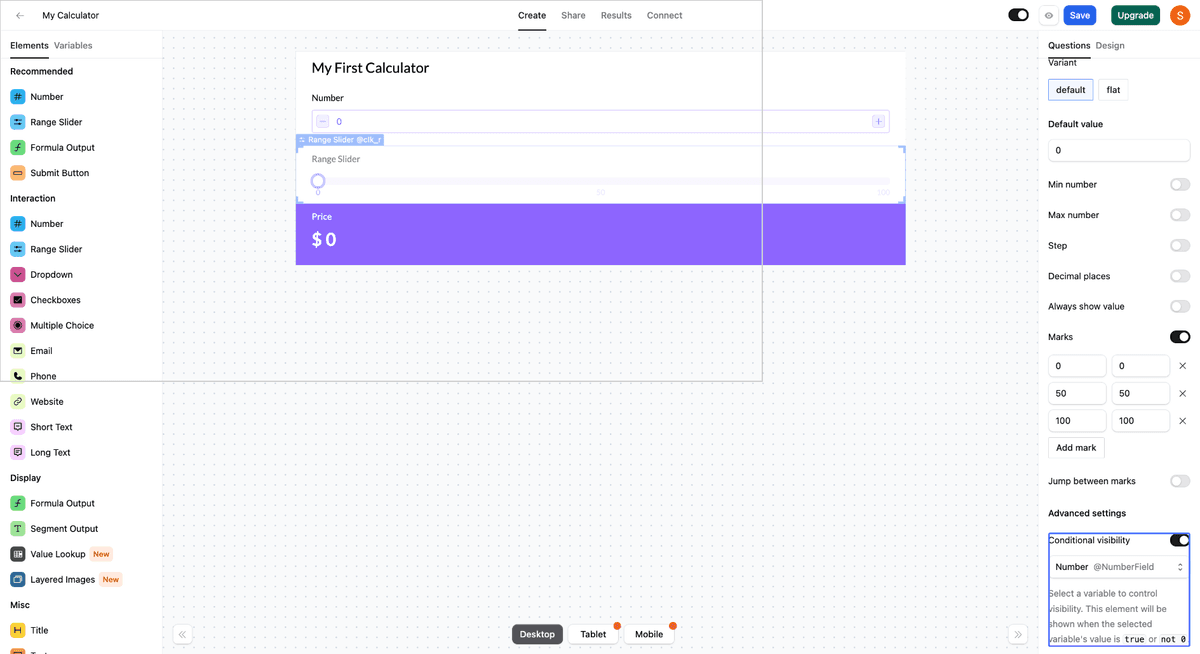

Go back Setting Conditional Visibility
Go back Setting Conditional Visibility

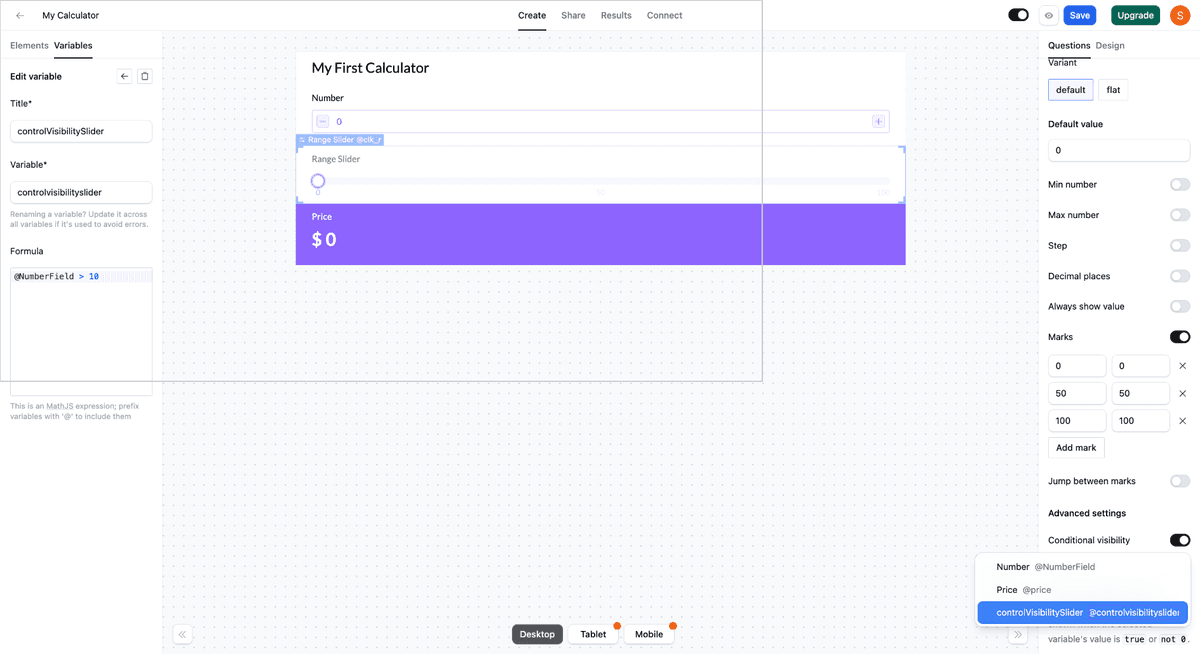

Select the newly created variable controlVisibilitySlider for conditional visibility
Select the newly created variable controlVisibilitySlider for conditional visibility

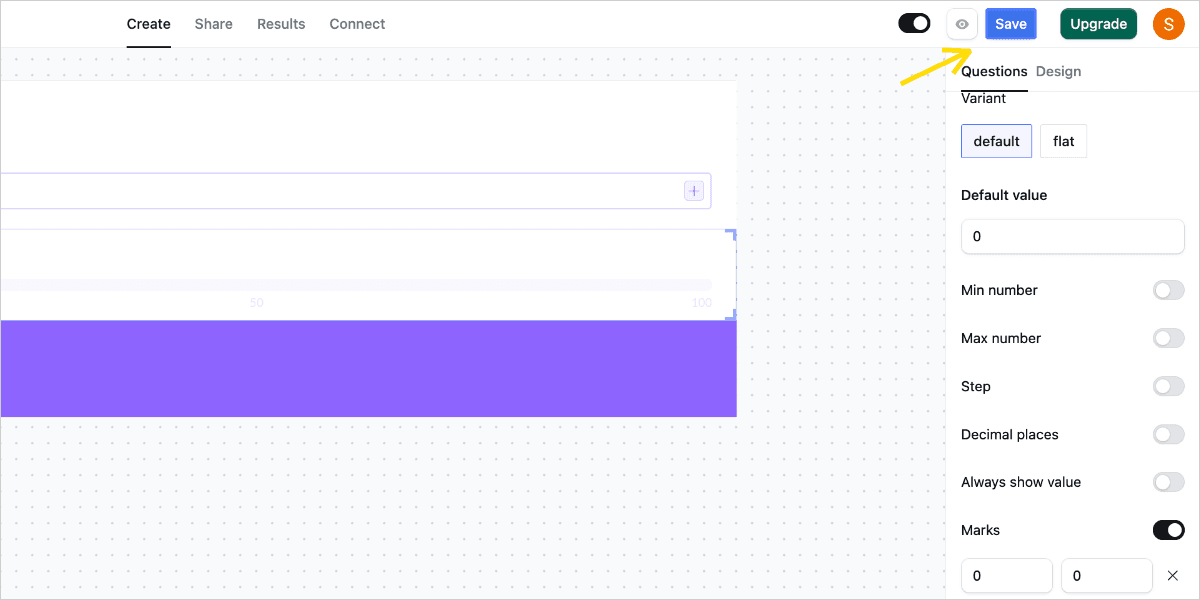

Click Save to apply changes in calculator
Click Save to apply changes in calculator

That's it! Your visibility rule for the slider is now set. It reads: show the slider when the number entered in the input field (with ID "NumberField") is greater than 10.

Advanced Visibility Rules

You can set more visibility rules for the same input field by modifying the formula for your custom variable. For example, you can combine multiple conditions using logical operators like AND (and) or OR (or).

@NumberField > 10 and @NumberField < 20

This formula will show the slider only when the number entered is between 10 and 20 (exclusive).

Preview Calculator

Click the "Preview" button to see the calculator in action. Enter a number less than 10 in the numeric input field to hide the range slider. Then, enter a number greater than 10 to reveal the range slider.

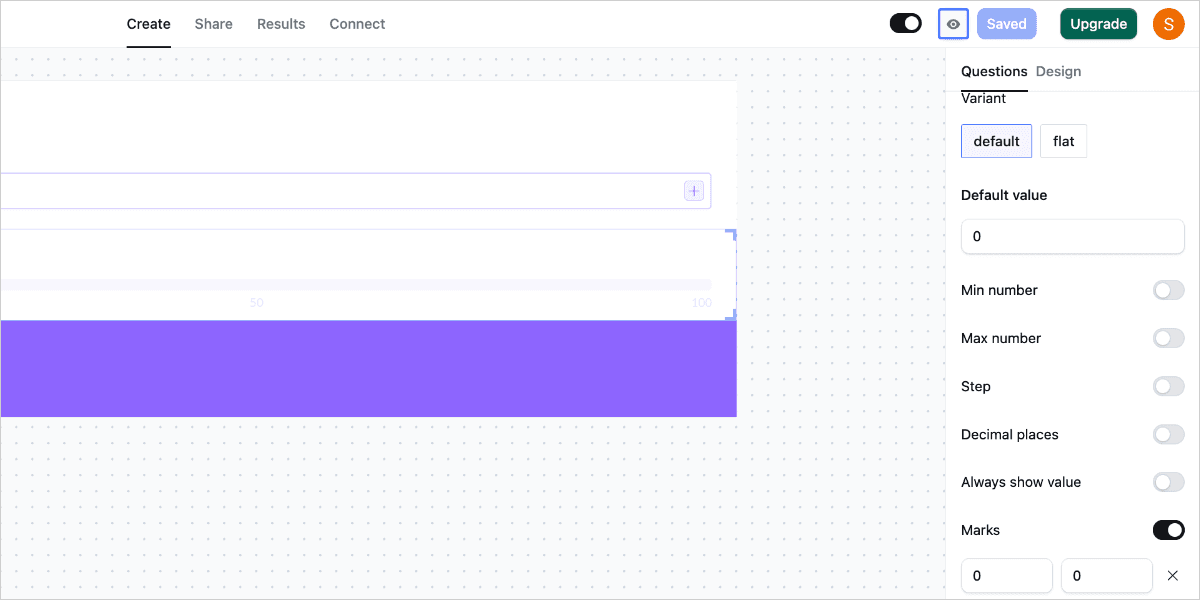

Click Preview to see the calculator in action
Click Preview to see the calculator in action

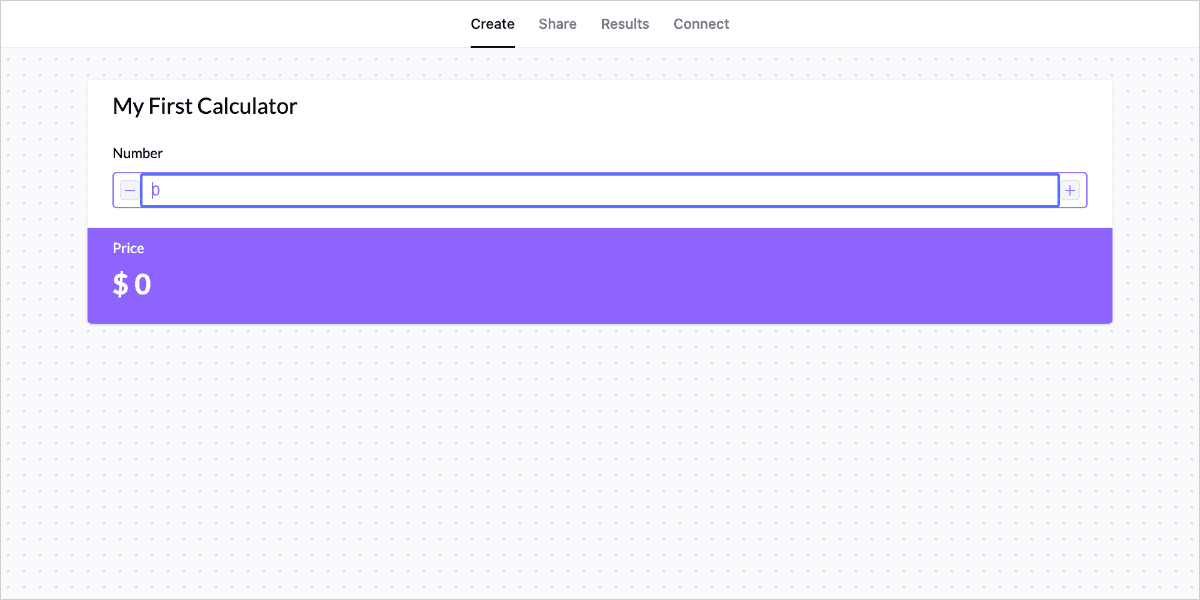

If number is less than 10, the range slider is hidden
If number is less than 10, the range slider is hidden

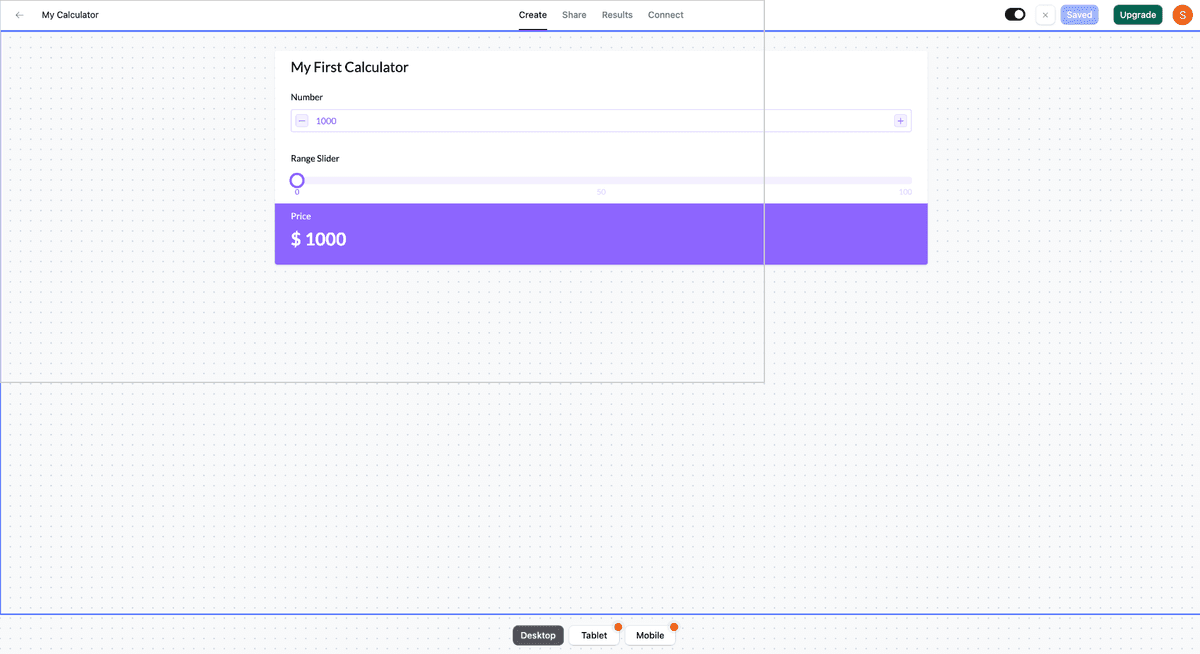

If number is greater than 10, the range slider is visible
If number is greater than 10, the range slider is visible

Best Practices and Tips

  • Choose meaningful names for your custom variables to keep your calculator organized and maintainable.
  • Always test your visibility rules thoroughly to ensure they work as expected.
  • Keep the user experience in mind when setting up conditional visibility. Ensure that the visibility rules make sense and enhance the usability of your calculator.

Troubleshooting and FAQs

Q: The conditional visibility is not working as expected. What could be the issue? A: Double-check your custom variable formula to ensure it's correct. Also, verify that you've selected the right variable in the "Setting conditional visibility" section.

Q: Can I set up conditional visibility for multiple elements based on the same input field? A: Yes, you can create multiple custom variables with different formulas and assign them to different elements to control their visibility based on the same input field.
